Quick Details
Application: Heat preservation XPS Board
Plastic Processed: XPS
Screw Design: Single-screw
Automatic Grade: Automatic
Place of Origin :Jiangsu, China (Mainland)
Brand Name: Sansu
Model Number: Sansu135/150, Sansu150/170
Voltage: 380V 50HZ380v 50hz 3phase (customized)
Power(W): 250kw
Dimension(L*W*H): 46x12x4m
Certification: CE BV ISO
After-sales Service Provided: Engineers available to service machinery overseas
Blowing Agents: CO2+LPG/Butane/DME/Ethanol
Packaging & Delivery
Packaging Details All parts on wooden pallets, Seaworthy Packing
Delivery Time 45 ~ 60 Days
Sansu Machine adopts CO2 technology, using GPPS (General Purpose Polystyrene), other Blowing Agent like Butane/LPG/DME, Nucleating Agent and high performance Fire Retardants as the raw materials to mass produce the nearly 100% closed-cell XPS Foam Board.
Technical Data
|
Model |
JG-XPS135/150 |
JG-XPS150/170 |
|||
|
Extruder |
|
135 |
150 |
150 |
170 |
|
Heating power(approx) |
KW |
50 |
52 |
60 |
75 |
|
Driving motor power |
KW |
75 |
55 |
90 |
75 |
|
Thickness of board |
MM |
20-100 |
40-120 |
||
|
Width of board |
MM |
600,900,1200 |
|||
|
Length of board |
MM |
1200,1250,2450,2500 |
|||
|
Output (approx) |
Kg/h |
320 |
380-450 |
||
|
Installed capacity(approx) |
KW |
260 |
350 |
||
|
Dimensions(L*W*H)(approx) |
M |
40*10*4 |
50*12*4 |
||
|
Total weight(approx) |
T |
26 |
32 |
||
Main Features of XPS sheet line:
1)Used PS material to extrude the foamed board for insulation construction field,
2) SIEMENS PLC digital control,
3)The die-mould accuracy, the runner more reasonable,
4)The recirculating water tank of cast aluminum cooling system,
5)Large output with stable working performance,
6)The self-contained auxiliary machines for your different production plan.

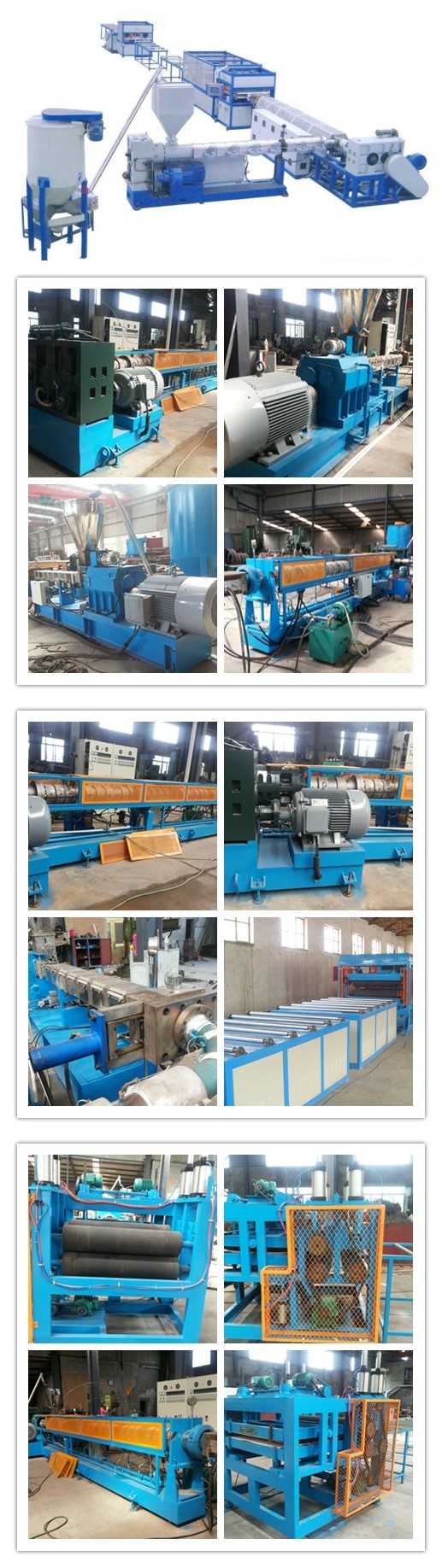

XPS Machine Parts
Name: Polystyrene granules automatic feeder
Materials: GPPS granules, talcum powder, fire retardant, color master, etc.
Screw up-take feeding system
with hopper,
with mixer
with dryer.
First extruder for melting
Type: Single screw extruder
With filter changer
Heating type: aluminum/ceramics heaters
Cooling type: air fans
Second extruder for foaming
Type: Single screw extruder
With filter changer
Heating type: aluminum/ceramics heaters
Cooling type: air fans
XPS board extruder die-head
Type: T-shape like cloth hanger for sheet
With oil temperature controller
Heating aluminum circles for connector and flang
Sheet calibration platform
Teflon material on platform surface
Button type
Air cylinder driven
Oil cooling
Houl-off unit
Four groups rubber rollers
Air cylinder driven
Board width cutter
Saw cutting type
With dust collector
Board Length cutter
Saw cutting type
With dust collector
