Quick Details
Application: ABS Sheet
Plastic Processed: ＡＢＳ
Screw Design: Single-screw
Automatic Grade: automatic
Place of Origin: Jiangsu, China (Mainland)
Brand Name: SANSU-ABS sheet extrusion line
Voltage:3 Phase, 380V/50HZ, 440V/60HZ, 415V/50HZ, 220V/60HZ
Dimension(L*W*H):28*3*2m
Weight:17Tons
Certification: CE SGS BV
After-sales Service Provided: Engineers available to service machinery overseas
sheet width: 300-2500mm
sheet thickness: 0.2-6mm
main electrical parts: ABB,, RKC, Siemens
guaranteed time: 12months after installation in customer’s factory
Packaging & Delivery
Packaging Details wooden cases or pallets with stretching films
Delivery Time 45 days after receiving deposit

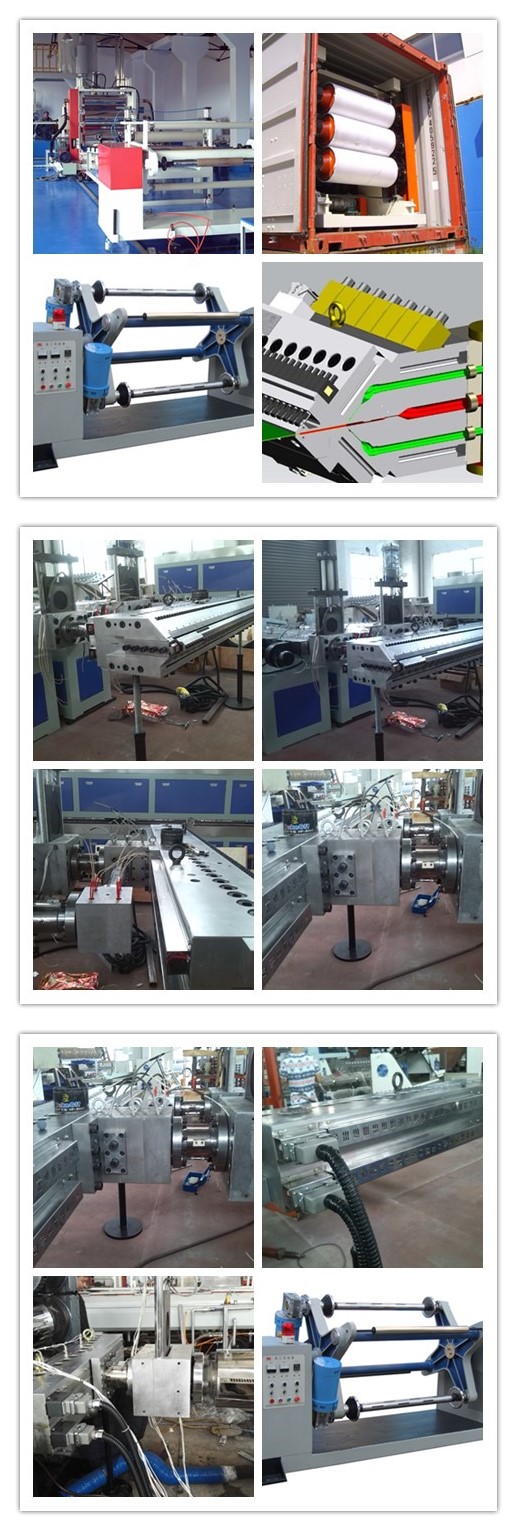

ABS sheet plate extrusion line
|
This Line Consists of |
||
|
1. |
Single Screw Extruder |
1 set |
|
2. |
Other extruder for 2-3 layers |
Optional |
|
3. |
Extrusion Die Head T-die Head |
1 set |
|
4 |
Hydraulic filter exchanging unit, |
1 set |
|
5 |
Three Roller Calendar |
1 set |
|
6 |
Cooling Frame |
1 set |
|
7 |
Edge Trimming Unit |
1 set |
|
8 |
Edge Material Crushing Unit |
1 set |
|
9 |
Double Roller Hauling off Machine |
1 set |
|
10 |
Cutting off Machine |
1 set |
|
11 |
Double Station Winding Machine |
1 set |
PART 1: Application:
ABS sheet:
It has such characteristics as high intensity, good temperature resistance, good rot proof, etc.
It can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
Applications: such as packing, printing, stationary, art works, etc.
Main product: gift/ad/file bag, lamp cover, food packing, etc.
PART 2: Sheet Specification:
Usual Sheet Width:300-2500mm
Usual Sheet Thickness:0.2-6mm
T-type Die Head for ABS sheet extrusion
|
Item |
Description |
Data |
|
1 |
Mould Materials |
special mould steel 5CrNiMO |
|
2 |
Surface Treatment |
Chromed |
|
3 |
Mouth Width |
500mm-2400mm |
|
6 |
Heating Method |
Heating Sticks Inside T-die |
|
7 |
Connector Material |
40Cr |
用于ABS片材挤出的T型模头
|
序号 |
详情 |
材料 |
|
1 |
模具材料 |
5CrNiMO不锈钢 |
|
2 |
表面处理 |
镀铬 |
|
3 |
模具宽度 |
500mm-2400mm |
|
6 |
加热方法 |
内加热 |
|
7 |
接口材料 |
40Cr |
