Quick Details
Application: PE PP PET Sheet
Plastic Processed: PE PS PP PET
Screw Design: Single-screw
Automatic Grade: automatic
Place of Origin: Jiangsu, China (Mainland)
Brand Name: SANSU-PE sheet extrusion line
Voltage:3 Phase, 380V/50HZ, 220V/60HZ, 440V/60HZ, 415V/50HZ
Dimension(L*W*H):26*3*2m
Weight:15Tons
Certification: CE SGS BV
After-sales Service Provided: Engineers available to service machinery overseas
sheet width: 300-2600mm
sheet thickness: 0.2-10mm
guaranteed time: 12months after installation in customer’s factory
Inveter: ABB
Contactor: SIEMENS
Temperature controller: RKC
Packaging & Delivery
Packaging Details wooden cases or pallets with stretching films
Delivery Time 45 days after receiving deposit

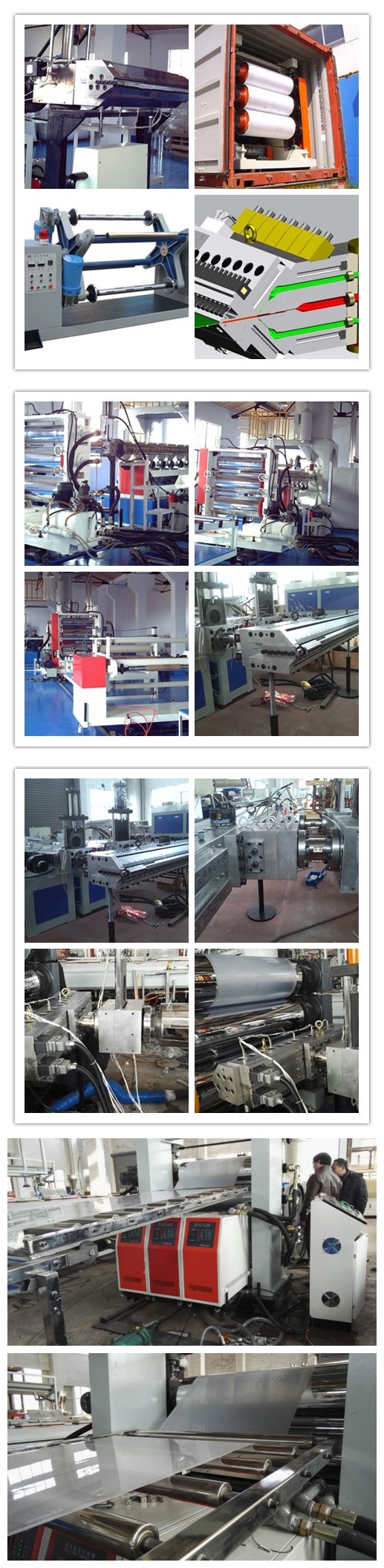

PE/PP/PET/PS sheet extrusion line
|
This Line Consists of |
||
|
1. |
Single Screw Extruder |
1 set |
|
2. |
Co-extruder |
Optional |
|
3. |
Extrusion Die Head T-die Head |
1 set |
|
4 |
Hydraulic filter exchanging unit, |
1 set |
|
5 |
Three Roller Calendar |
1 set |
|
6 |
Cooling Frame |
1 set |
|
7 |
Edge Trimming Unit |
1 set |
|
8 |
Edge Material Crushing Unit |
1 set |
|
9 |
Double Roller Hauling off Machine |
1 set |
|
10 |
Cutting off Machine |
1 set |
|
11 |
Double Station Winding Machine |
1 set |
PART 1: Application:
PE PS sheet:
It has such characteristics as high intensity, good temperature resistance, good rot proof, etc.
It can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
Applications: such as packing, printing, stationary, art works, etc.
Main product: gift/ad/file bag, lamp cover, food packing, etc.
PART 2: Sheet Specification:
Usual Sheet Width:300-2600mm
Usual Sheet Thickness:0.2-10mm
T-type Die Head For PE sheet extrusion
|
Item |
Description |
Data |
|
1 |
Mould Materials |
special mould steel 5CrNiMO |
|
2 |
Surface Treatment |
Chromed |
|
3 |
Mouth Width |
500mm-2400mm |
|
6 |
Heating Method |
Heating Sticks Inside T-die |
|
7 |
Connector Material |
40Cr |
用于PE片材挤出的T型模头
|
序号 |
详情 |
材料 |
|
1 |
模具材料 |
5CrNiMO不锈钢 |
|
2 |
表面处理 |
镀铬 |
|
3 |
模具宽度 |
500mm-2400mm |
|
6 |
加热方法 |
内加热 |
|
7 |
接口材料 |
40Cr |
